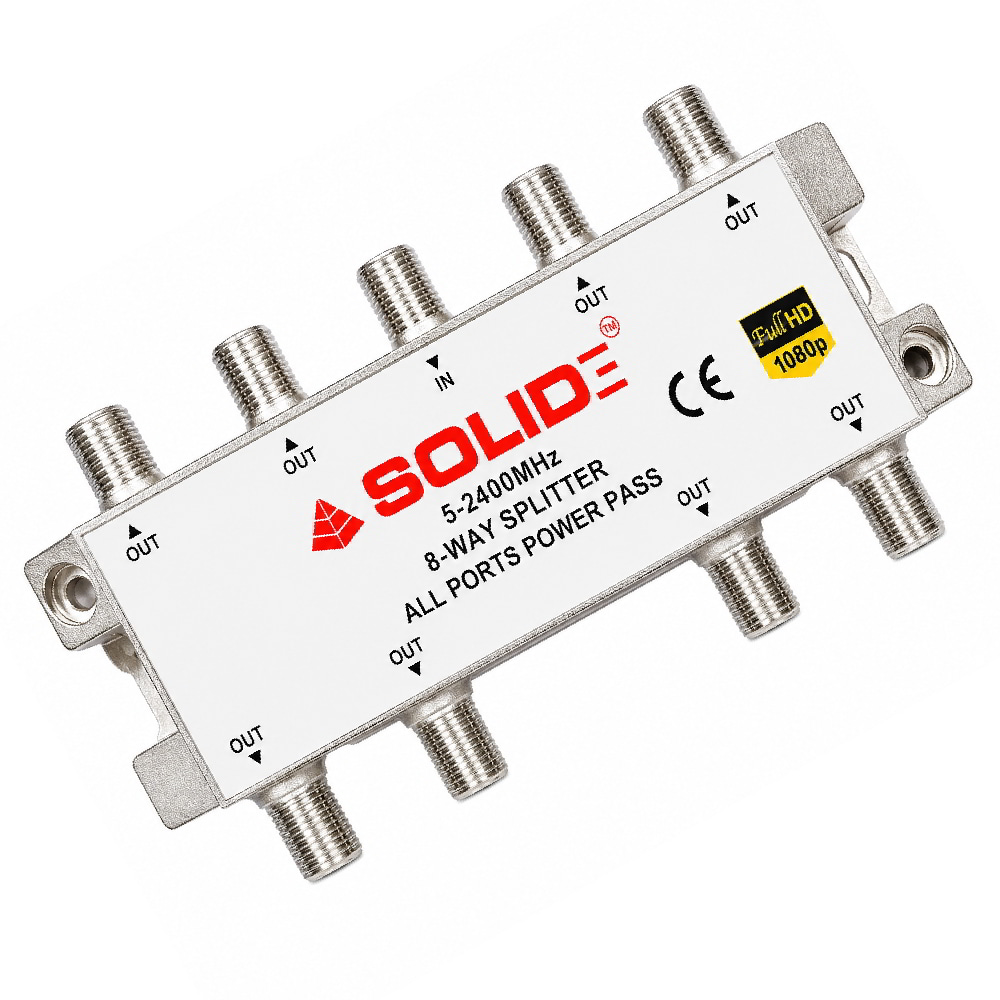

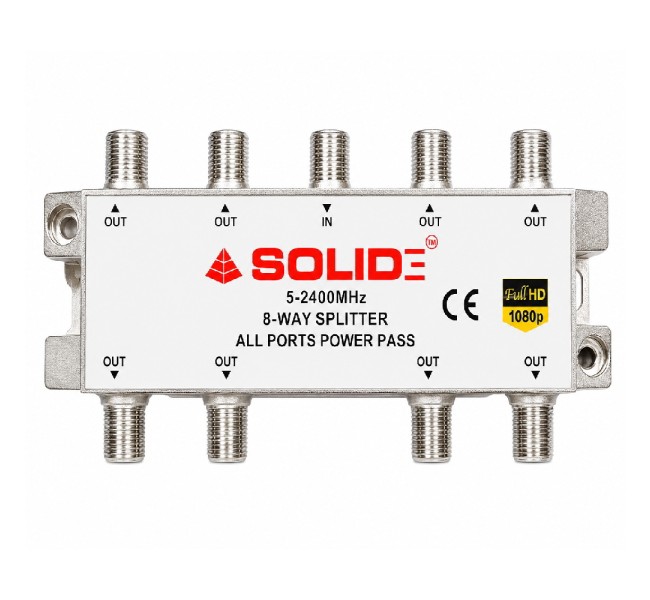

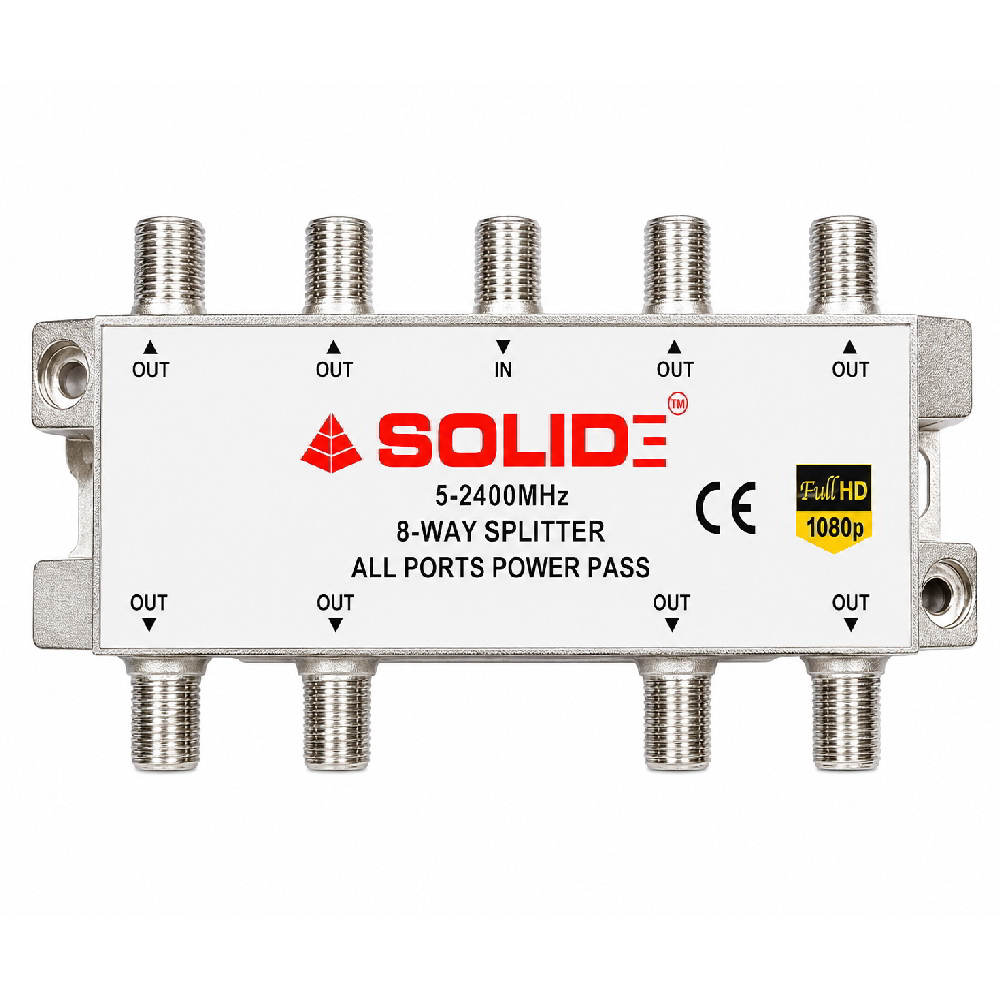

Solid 8-Way Splitter - 8-Way Power pass

The Solid 8-Way Splitter is a high-performance signal distribution solution for SATV/CATV networks. Its robust design, wide frequency range, and high isolation make it an ideal choice for distributing Pay and FTA TV channels from C-Band and Ku-Band satellites. With its low insertion loss and power passing capabilities, this splitter ensures high-quality video and audio transmission, making it a perfect solution for various SATV/CATV applications.

Key Features:

- 8-Way Power Pass: All 8 ports support power passing, with 1 input and 24V, 0.8A (Max.) power handling.

- Wide Frequency Range: Supports 5-2400 MHz frequency range, ideal for distributing Pay and FTA TV channels from C-Band and Ku-Band satellites.

- High Isolation: Ensures minimal signal interference between ports, providing perfect performance index.

- Low Insertion Loss: Minimizes signal loss, ensuring high-quality video and audio transmission.

- F-Connector: All ports feature F-connectors, ensuring secure and reliable connections.

Ideal for:

- Distributing Pay and FTA TV channels from C-Band and Ku-Band satellites

- SATV/CATV networks

- Cable TV distribution

- LNB signal distribution in multi Set-top box connections (H or V, not both simultaneously)

- DD Free Dish and other DTH frequency lists

Zinc Die-cast housing, nickel-plated

Easy installation with two edge hole sites

Screening factor: 5-2400 MHz >100dB

Low insertion loss

High insolation

Perfect performance index

Designed for SATV/CATV Power passing 24V 0.8A (MAX.)

All ports F-(f) connector, 75 Ohm

This 8 Way splitter is easy to use with Cable TV distribution, All 8 ports are power pass with 1 input. You can also use LNB signal distribution in multi Set-top box connection but you can use only H or V at the same time. You can not use both H/V at the same time.

This Splitter can distribute Pay and FTA TV Channels from C-Band and Ku-Band like DD Free Dish. You can get the other DTH frequency list from here.

Free Shipping

FAQs-

What is a Solid 8-Way Power Pass Splitter?

This is a device that allows you to stream TV signals to up to eight devices such as a TV or set-top box without losing quality.

Does it affect picture quality?

A good-quality splitter minimizes signal loss, so your picture quality should remain strong on all connected devices.

What is the power pass on a splitter?

Users can simultaneously access cable on many television sets by using a power pass splitter. Often referred to as a power pass splitter, a power passing splitter is a device that distributes power or signal from one end of a cable to two or more output connectors on the other end.

What is the main function of splitter?

An optical device called a splitter divides light, like laser beams, into two or more beams. Splitters are particularly helpful in microscopy because they may divide the emission light from the microscope and serve as an interface between the microscope and the detector or camera.
